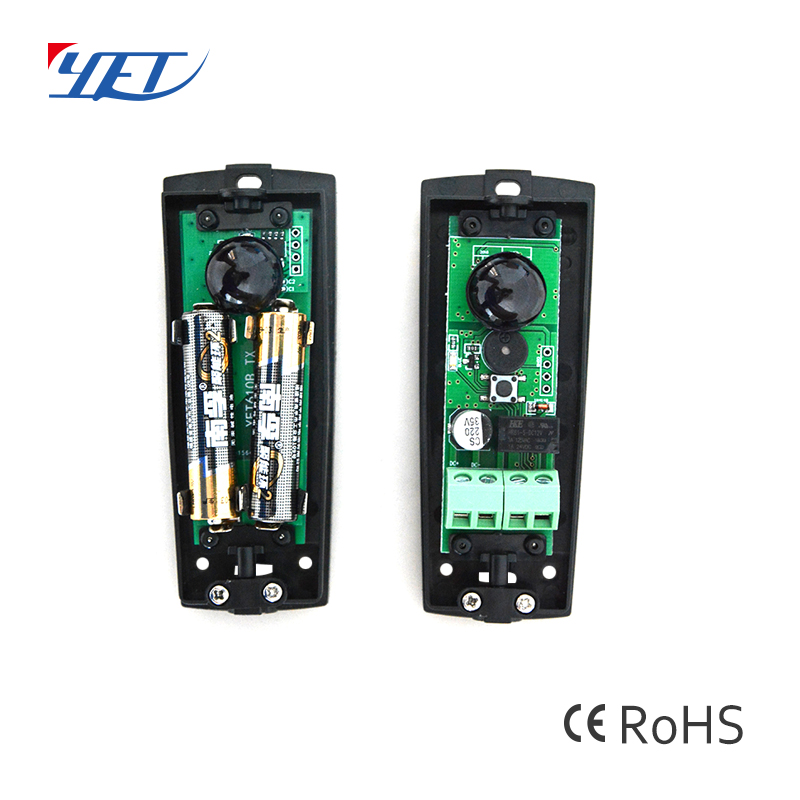

Manufacturer safety beam sensor wireless photocell with battery for automatic gate opener

Manufacturer safety beam sensor wireless photocell with battery for automatic gate opener

Specification:



1.Working Voltage : 12-24V AC/DC

2. Working current (24V DC): emitter: ≤8mA , receiver: ≤30mA

3. Photocell wavelength: 940nm

4. Angle of emission: ≤±5 degree

5. Receiving range: ≥12m

6. Angel adjustment of PCBA: ±90 degree

7. Working temperature: -20℃~+60℃

8. Relay contact loading capacity: 1A/30VDC

9. Size: 100*40*35mm
Features:

1.Single beam sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc
2.Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.
Narrow infrared beam (I or II) can avoid interruption by external light.
3.Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).
4.The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.





Safety Instruction:

1. For security, please read the user manual carefully before initial operation.

2. This photocell is without any fuse, so please make sure the power is off before installation.

3. Only used this system that do not cause any danger life or property during the running failure or its security risks eliminated.

4. Please guarantee the products used in effective working range.
