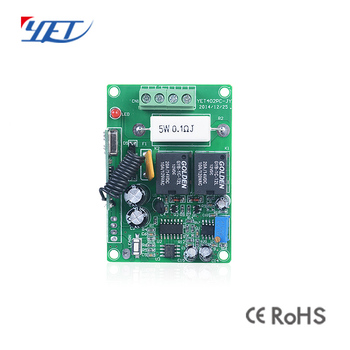

YET402WFR-JY is with high confidentiality, large storage capacity, stable performance, low power consumption etc characteristics.
It is convenient to use，only needs to transmit the wireless
signal transmitted by the remote control and the receiving controller receives and stores it,then it can be used as a complete set.
If you lost your remote control which has been learned，and you want to make it ineffective，you only need to clear the information stored in the receiving controller.
If you find your lost remote and you want to reuse it,just re-learn it as a new one.

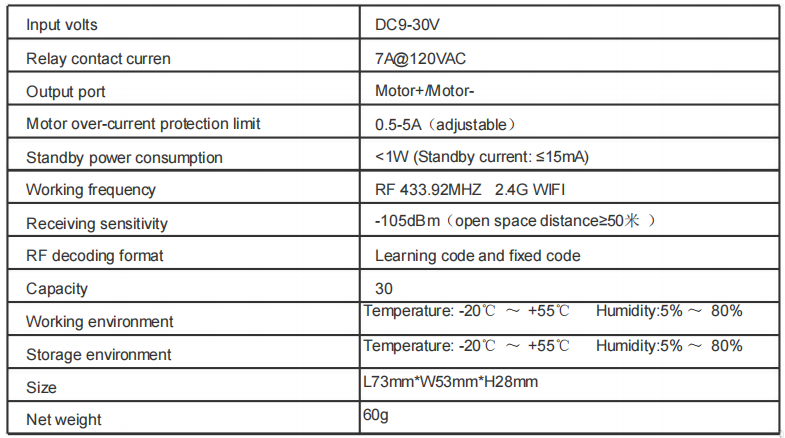

Product Specifications are as follows，
Product function description are as below，
1.For Program:
Press the learning button on the controller, release the learning button after the LED light is on, the controller enters the
learning state (the LED is off at this time), and then press the remote control button that needs to control the controller,
when you see the controller The LED light flashes 5 times and then goes out, indicating that the learning has been successful.
Up to 30 remote control buttons of this type can be learned.
2.For Clear Code,
If the remote control is lost,ant you want to make the remote control all invalid, you should press the learning button
(over 8S) and wait for the LED light to go out, the controller will automatically clear the content in the memory.

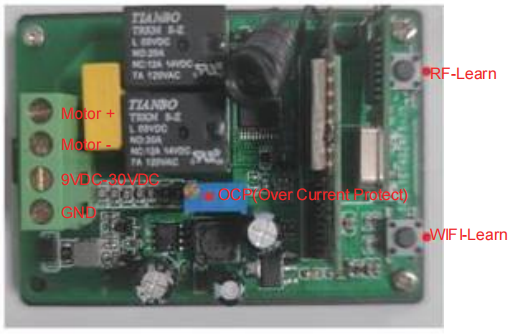

3. For Output description
The controller output is two channel latching, two channel momentary, described as follows:
Press the 1 button of the remote control or the L1 button of the APP once, the motor keeps forward rotation, press the same button again, the motor stops.
Press the 2 button of the remote control or the L2 button of the APP once, the motor keeps reverse rotation, press the same button again, the motor stops.
Press and hold the 3 button of the remote control or the M1 button of the APP, the motor will keep forward rotation, the motor will stop when you release it.
Press and hold the 4 button of the remote control or the M2 button of the APP, the motor keeps reverse rotation, the motor stops if you release it .
Ok，above are the details I want to share with you about this YET402WFT-JY,if you have any questions，please feel free to contact us.
