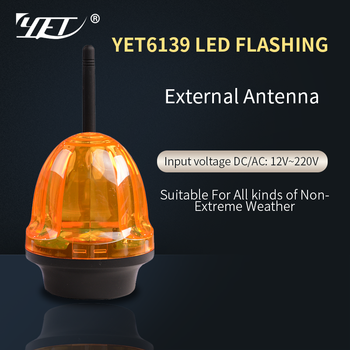

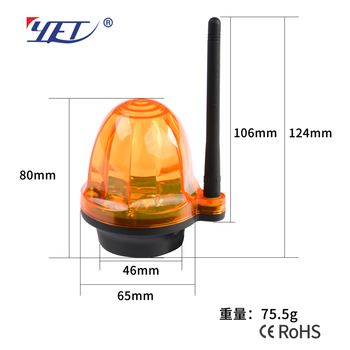

Comparing to other type flash lights，this model is small and exquisite in design and light in weight, which saves you the shipping cost in shipping.Now the freight is still rising day by day, please don't miss this flash light.
It is with wide range voltage,supporting DC/AC: 12V~220V.
It can work under the temperature of -10℃~60℃,and store under the temperature -20℃~70℃.
There will be 1 flashing light,2 sets of screws and rubber sleeves,2 flashing light fixing
Brackets crews, a manual for 1 set.
We provide 2 versions for your choice,General device(V1.0) and Acousto-optic device (V2.0) .
About Product wiring ,
1、When wiring the product, you need to unscrew the antenna on the flashing light,and use a screwdriver
to unscrew the screws on the light board,and remove the light board as shown in the figure above;
2、There are two wiring terminals and two jumper terminals on the board:
(1）Antenna wiring terminal: there is an RF antenna on this product, which is mainly an
external antenna configured for the user controller. When in use, connect the antenna
interface on the user controller with the antenna terminal of the product with a wire;
(2）Power supply terminal: the interface used to supply power to this product, the power
supply voltage range: DC/AC12~220V;
(3)Work-Mode Jumper terminal: used for the selection of always-on mode (NOR) or
flashing mode(FL),change the position of the jumper cap as needed;
(4)Beep-Mode Jumper terminal: used for the selection of ‘Bi!-Bi!’or ‘Bi...!’ mode (BP)
or cancel ‘Bi!-Bi!’ mode(NC),change the position of the jumper cap as needed.
Please note, the Acousto-optic device (V2.0) have this function, and the General device (V1.0) dont have this function.
Ok above are the details of this flash light I want to share with you today,if you want to get more information ,please feel free to contact YET sales.
