Keeping close up with the latest trend, Shenzhen Yaoertai Technological Development CO., LTD. has made Superheterodyne Module with Decoding Function Wireless ASK Receiver Module YET205C-630 a competitive product in the market. It is expected to lead the industry trend and bring benefits to customers. Remote Control Influenced by the market trends and customers' requirements, the design of Remote control is made to be unique. It adopts the raw materials that have been tested to conform to the quality standards, which guarantees its quality from the source.
| Brand Name: | YET | Model Number: | YET205B-630 |
| Use: | Universal | Place of Origin: | Guangdong, China |
| Power supply voltage: | DC 9-12V | Chip Type: | HS1527/270K/433.92MHZ |
| Quiescent current: | 7~8mA | Receive sensitivity: | -112dBm |
| Working temperature: | -30 ° C ~ +85 ° C | Operating frequency: | 433 MHz |
| Output mode: | Pulse outputt | Dimensions: | 34 *21.6 *5mm |
| Output signal: | four-way data | Signal type: | Pulse (100ms high when active) |
Superheterodyne Module with Decoding Function Wireless ASK Receiver Module YET205C-63
Overview
YET205C-630 superheterodyne decoding wireless receiver module is a super-heterodyne band decoding module with high cost performance in ISM band. It has perfect anti-static protection and high reliability. It is widely used in access control, vehicle system, security, In areas such as industrial control and communications, this system is ideal for complex environments and high system requirements.
Product Parameters
| Power supply voltage | DC 9-12V |
| Chip Type | HS1527/270K/433.92MHZ |
| Quiescent current | 7~8mA |
| Receive sensitivity | -112dBm |
| Dimensions | 34 *21.6 * 5mm |
| Working temperature | -30 ° C ~ +85 ° C |
| Operating frequency | 433 MHz |
| Output mode | Pulse output |
| Output signal | four-way data |
| Signal type | Pulse (100ms high when active) |

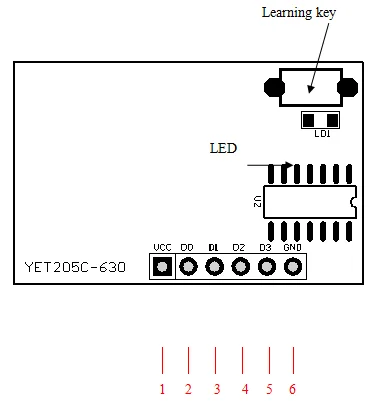

1,VCC 2,D0
3,D1 4,D2
5,D3 6,GND
NOTES:
The YET205C-630 receiving module must be paired with the remote control before it can be used.
Learning and clearing methods:
Press the learning button (LEARN) on YET205B-630. When the LED light is on, release the learning button, YET205B-630 enters the learning state (the LED is off), then press any button on the remote control to see the LED flashing quickly. It is extinguished after 3 times, indicating that it has been successfully learned. You can learn up to 20 remote controls of this type.
If the remote control is lost, if you want to disable the remote control, you should press and hold the learning button (more than 8S). When the LED is off, the receiving module will automatically clear the contents of the memory. To re-use, just learn again.
Our Service:
Before Order
1. Website : www.szyet.com / szyet.en..com.
2. Trade manager account: cn220025252
Why choose us
packing &delivery
Package details:
Sales packaging: PC bag/blister card/small box
Export packaging: Brown carton, 500pcs/CTN
Port:Shenzhen
Lead Time : 1-3 working days for 100-500pcs, 7-10 working days for 1000-5000
1.Your inquiry can be resposed in 12 hours.
2.All your question can be answered by our well-trained and experienced staff in English
3.All your customised products which we can help you to design and put into production
4.All your private information such as the sales area, ideas, design etc. can be protected.
5.Delivery by DHL,UPS,EMS or by sea as your requirments.
Company Information:
Established in 2005, Shenzhen Yaoertai Technology Development Co., Ltd is a high-techcompany specialized in researching, producing, selling and offering service of security products.With 13 years experience in wireless remote control system of automatic door, window and smart home control system, YET aim to be the first brand in this field.
YET's products including wireless transmitter and receiver system, wireless motor controlling system, wireless smarthome control system, wirelesssmart home alarm system.
YET’s excellent R &D team brings the advanced and mature design project. All the raw materials from the world famous brands, the professional imported production equipment ensure the fast production and stable quality. We also strictly execute the ISO9001 quality management system in our daily management. We also accept OEM and ODM to meet all customer’s demand.
we attend kinds of exhibitions all around the world,such as Canton Fair,German exhibition,.etc.In that place you can see our professoion and well trained stuff ,all of us are warmly welcome you to visit our booth when we attend that event.we hope that in that way we can meet our partners,customers as well as make some new friend.and we also can share more information about the market.
certificate

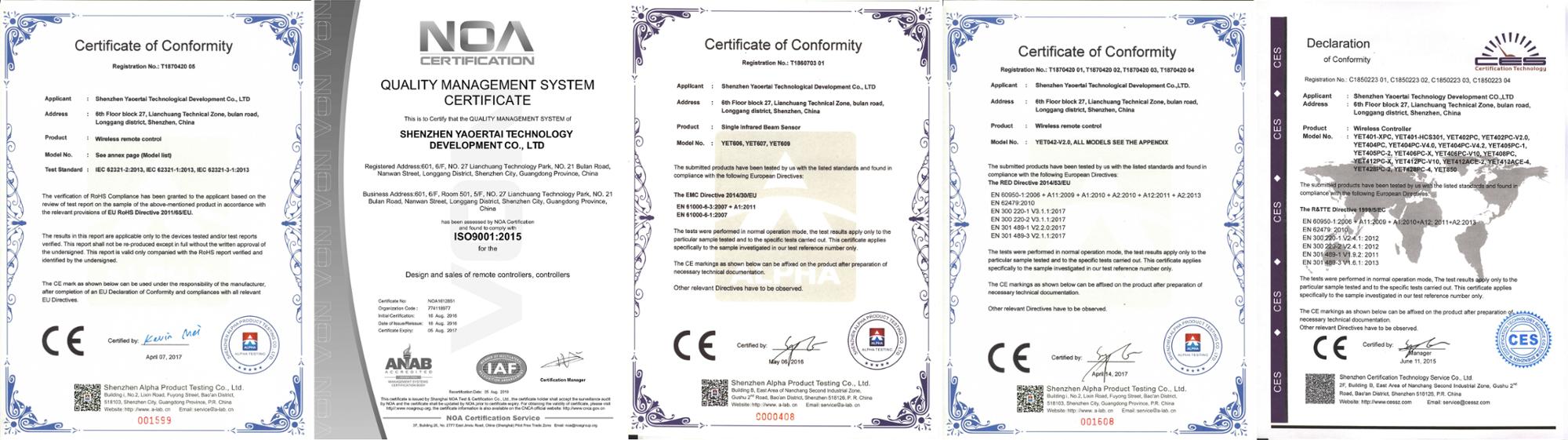

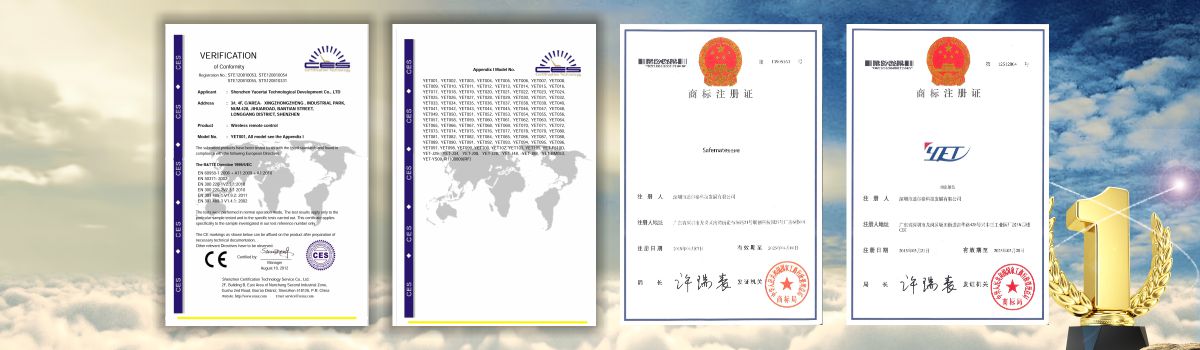

we have CE& ROHS ,and Strictly execute the ISO9001 quality management system in our daliy managemnet,so that our product have good stablility and maneuverability.

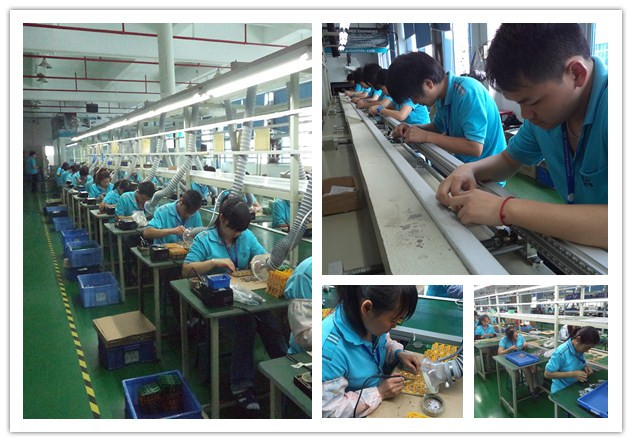

Our factory have over 50 workers,which can meet the production needs,meanwhile,we have strictly management about the produce to mke sure all the products can be over average.
