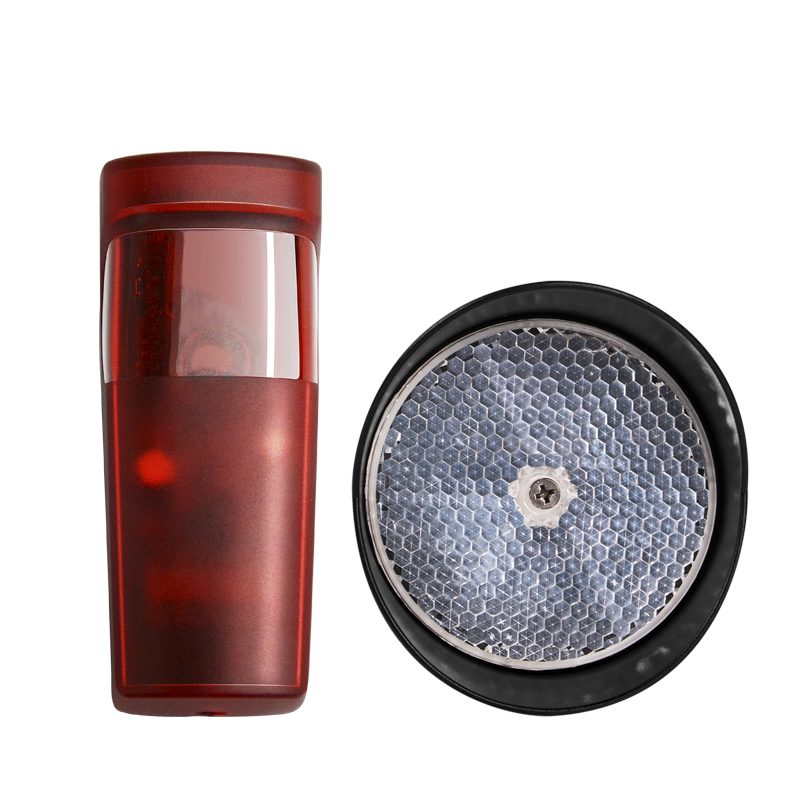

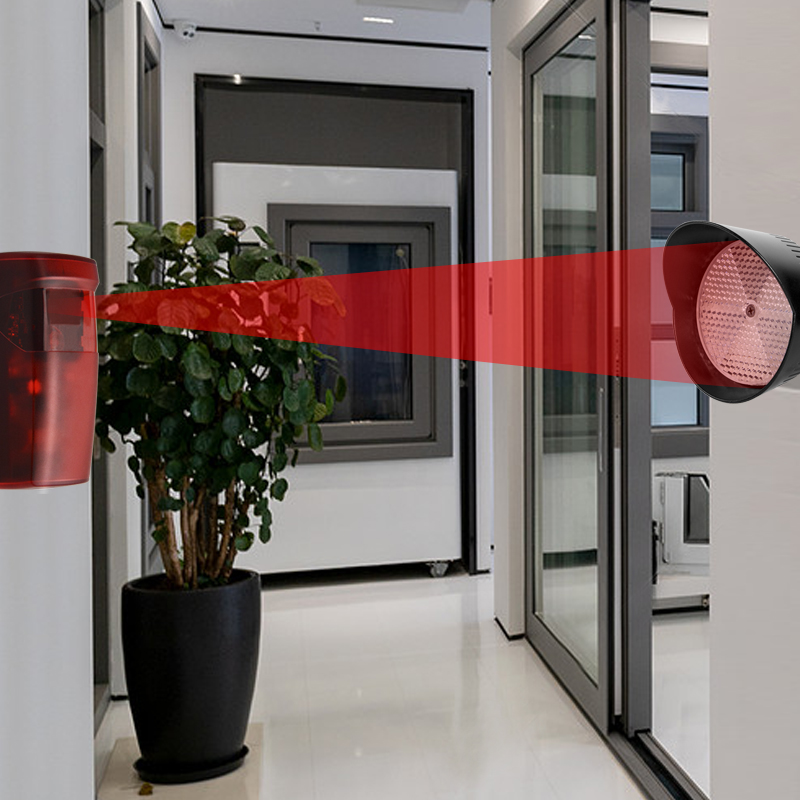

YET611RI is RF version infrared photocell. The common application scenarios for this Photocell sensor include: lifting doors, revolving doors, sliding doors, fence security protection, window security and balcony security, warehouse security, parking lot security and other outdoor places.
Its input voltage are AC9V-AC24V and DC12V-DC24V.The sensing distance is more than or equal to 10m with imported baffle-board and it is more than or equal to 7m with the baffle-board made in China.

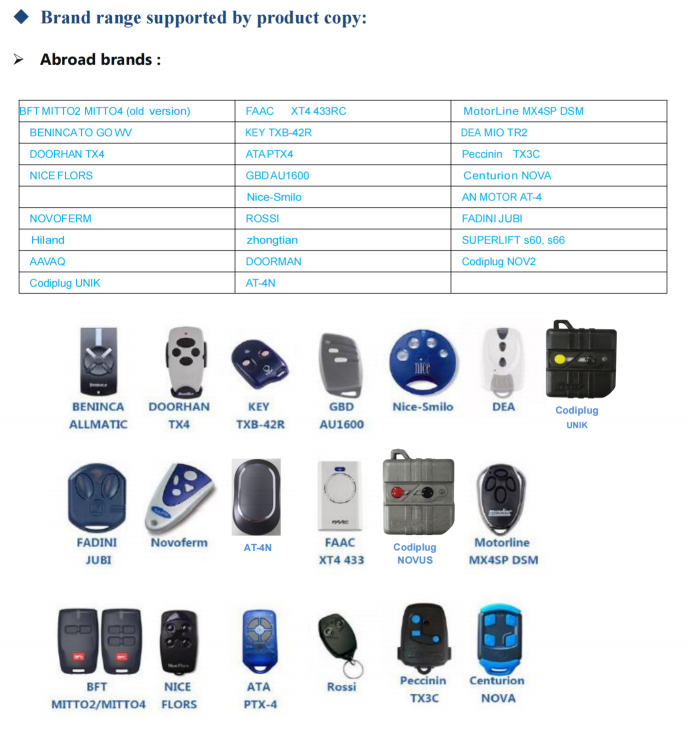

This photocell supports fixed code/learning code and some rolling code type such as BFT、FAAC、NICE and so on(You can check the instruction to confirm which specific brand can be copied).
Before using the reflective infrared photoelectric sensor , the user should copy the key function of their original remote control according to the actual application needs, The specific copy method are as follows.
Product copy operation:
一、For Conventional copy method:
(1) Press and hold the infrared upper learning button, the red LED will flash twice and then go out to enter the learning state.
(2) Close the original remote control to the infrared, press and hold the button of the original remote control, and the red LED flashes, which means that the code has been successfully copied.
二、For Special BFT copy (MITT02/MITT04) mode: only for BFT
(1) Press and hold the infrared learning button, the red LEI) will flash twice and then go out, and it will enter the learning state. Keep the learning button on, and press the code sending button briefly once to enter the remote control mode of copying BFT brand.
(2) Close the BFT brand remote control to the infrared, press the front two buttons of BFT at the same time, the red LED flashes twice, and the seed copy is successful. Release the BFT remote control button, press any button of the BFT remote control, and the red LED flashess which means that the code has been
(3) BFT seed sending:
Press the infrared learning button and sending button at the same time to send BFT seeds.
三、Special Codiplug NOV2, Codiplug UNIK copy method
(1) Press and hold the infrared learning button. The red LED flashes twice and then goes out, Now it will enter the learning state. Keep the learning button pressed, and press the code sending button twice to enter the remote control mode of copying Codiplug NOV2 and Codiplug UNIK brands.
(2) Close the Codlplug NOV 2 or Codiplug UNIK remote control to the infrared, press any key of Codlplug NOV2 or Codiplug UNIK remote control, and the red LED flashes, which means that the code has been successfully copied.

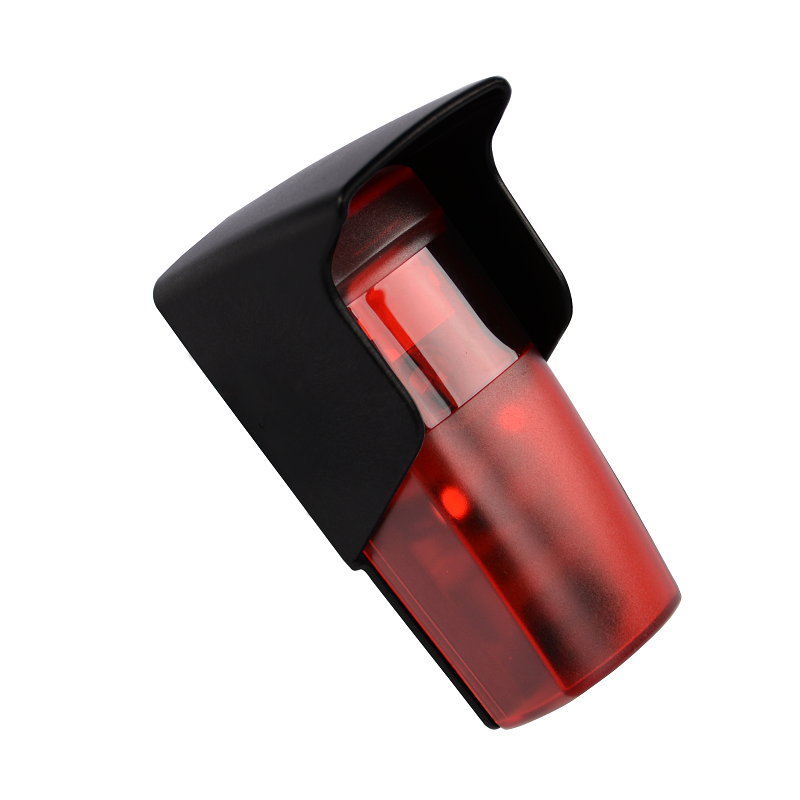

There are protection cap for both photocell and the mirror.They can protect rain and sunlight to some extents which mean the photocell can also be used in slightly harsh conditions if you have fitted them both with protective caps.So if you have very high requirement of waterproof level and anti-glare level，please do not miss this type reflective photocell.
If you are interested in this photocell and you want to get more details of it,please feel free to contact us.
