YET868-V2.0 Sliding Door Controller

March 13, 2023

Q1:Where is the main application of YET868-V2.0?


A1 : YET868-V2.0 is a controller dedicated to the control of translational electric doors, with the functions of setting stroke, automatic delay. Door closing, blocking stop, over current detection, limit switch, soft start and soft stop, adjustable torque and other functions; Display to set various application control parameters. This product is widely used in garage doors, supermarkets and other places.


Yaoertai Company is China's top three custom-made wireless remote control manufacturer. YET was established in 2005,and having over 200 workers now. YET all products can be used in the accessories of electric screen, Electric-drive airer, electric door and window , smart home system , smart home alarm system and so on .

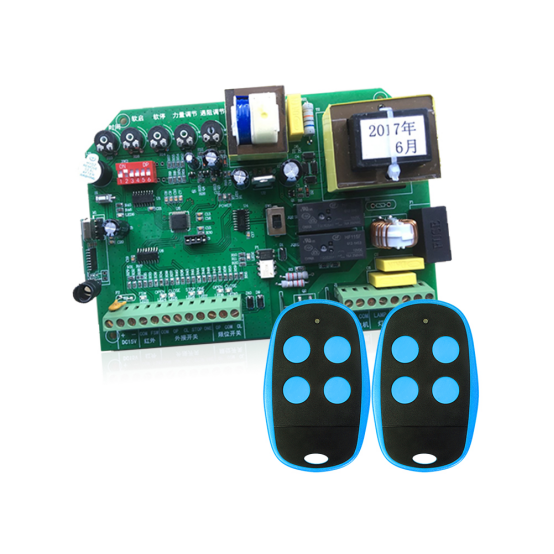

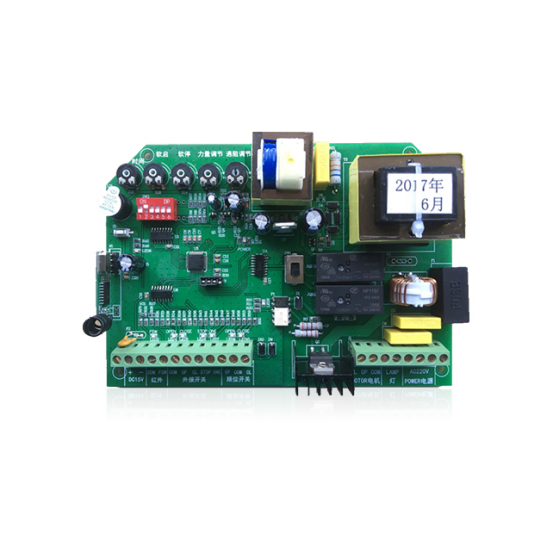

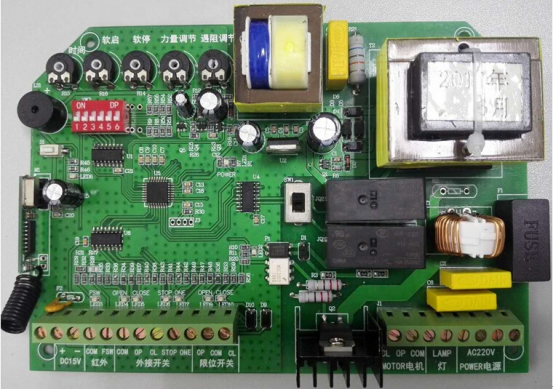

YET868-V2.0 slding door controller









YET868-V2.0 sliding door controller feastures:


  1. 1. Dedicated to the electric sliding door controller;

    2. Setting stroke, automatic delay door closing;

    3. Stop when blocked, overcurrent detection, limit switch;

    4. Soft start and soft stop, torque adjustable;

    5. Large remote control capacity, 120 buttons (equivalent to 30pcs of 4-button remote controls).






Product function description


  1. 1. Start up


Power the controller, the buzzer will sound 2 times, then LED screen lights up and display numbers 0-9 to start up it’s self-check. When a “.” shows up on the second LED screen, the controller can go to work.


2. Learning remote control


To learn the remote control, press the learn button for 3 seconds. After the point on the second display should be turned off, the point on the first display should be turned on.Then the mainboard should wait 10 seconds in order to transmit the code of the remote control. When the code is captured, the buzzer emits 3 beeps and displays the number of saved remote controls. The device then exits remote programming mode. If the code is not captured during 10 seconds, the mainboard will exit the remote programming mode.


3. Removing remote control:


When the user presses and holds the learning key for 10 seconds. The motherboard deletes all remote controls from memory. The buzzer rings for a long time.





If you interesting in it, don’t  hesitate to contact me. The price of new promotion not only beauty but also affordable. So far, many customers have repurchase this smart life remote control product. The opportunity is rare, so you do not miss this chance! If you are interested it, please let me know, I will give you more details about it, looking forward to your early inquiry!
