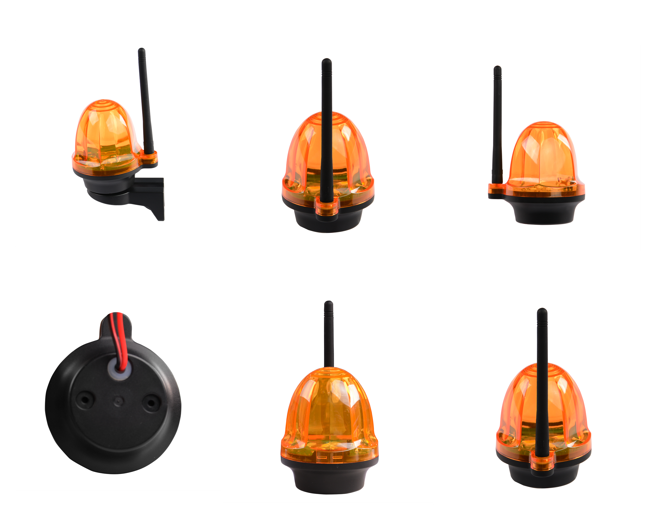

Today recommend that our best selling items--YET6139 warning flash lamp. This product is a high stability, high brightness LED warning flashing light. The product is suitable for family residential area, building villa, plant, business field, warehouse, office building, a variety of door switch warning role.
Product installation conditions:
1. The product can be used in doors or outdoors; Outdoor waterproof IP55.
2. The installation surface should be firm and free from vibration.
3. It will be installed in a place where it is easy to see.
Product Features:
1. Support AC/DC 12-220V, LED light.
2. Two work modes: bright light or flicker(select by jumper).
3. Handle enabling mounting to a vertical plane.
4. With alarm sounds(select by jumper).
Product wiring introduction：
1、When wiring the flash lamp, you need to unscrew the antenna on the flashing light,and use a screwdriver to unscrew the screws on the light board,and remove the light board as shown in the figure above;
2、There are two wiring terminals and two jumper terminals on the board:
(1）Antenna wiring terminal: there is an RF antenna on this product, which is mainly an external antenna configured for the user controller. When in use, connect the antenna
interface on the user controller with the antenna terminal of the product with a wire;
(2）Power supply terminal: the interface used to supply power to this product, the power supply voltage range: DC/AC12~220V;
(3)Work-Mode Jumper terminal: used for the selection of always-on mode (NOR) or flashing mode(FL),change the position of the jumper cap as needed;
(4)Beep-Mode Jumper terminal: used for the selection of ‘Bi!-Bi!’or ‘Bi...!’ mode (BP) or cancel ‘Bi!-Bi!’ mode(NC),change the position of the jumper cap as needed.
