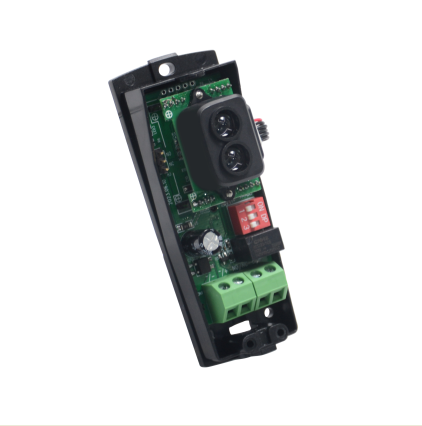

Reflective laser photocell sensor, mainly use lift doors, revolving doors, sliding doors, fence security protection, window and balcony security, warehouse security, parking lots and other outdoor security places. Before using the product for the first time, have to set the sensing distance for the product according to the actual application needs.The sensing distance of the product is required to be more than 0.3 meters.
Specification:
Working volts: AC/DC12-24V
Sensor distance: 0.3-7.5m(dip switch setting)
Single reception angle: 2 degree
Product output interface : GND/AC、VCC/AC、NO/NC、COM
Product output type : Relay dry contact output (NO/NC is selected by product jumper)
Product Size(L*W*H) ：100 * 40 * 35mm
Two indicate light for show work status
Product Operating Instructions:
Power on the product, after the power indicator and status indicator flash 3 times, the power indicator is always on, the status indicator is off, and the buzzer makes a short beep, indicating that the boot initialization is successful;
First set distance：
Enter the distance setting mode: After the product is powered on and initialized successfully, within 10 seconds, the user uses a shield to cover the distance from the product (within 0.5m) back and forth 5 times, until the buzzer "beep-beep-beep", enter the distance setting mode ;
When power light will flash continuously and quickly, indicating that the product has entered the state of detecting obstacles;
Adjust the position of the product so that the product is within the detection range required by the user; you can also listen to the number of buzzer sounds (slow sound: 1m/time, fast sound: 0.5m/time) to preliminarily determine the current product distance. distance between obstacles;
When you hear a long beep of the buzzer, the power indicator (green light) flashes slowly for 3 times and then stays on, indicating that the distance configuration is successful, and exits the distance setting mode;
When you need to reset a new detection distance, please power on again and repeat the above steps.
