About our company:
Yaoertai manufactory, established in 2005, specialized in the field of manufacture about RF remote control, receiver, sensor, module, and other accessories for more than 18 years.
YET factory guarantees you high quality and attractive price, CE & RoHS are approved, confidence in dealing and after-sales service, OEM & ODM is accepted.
Good news about this New Product Promotion price of YET611:
Domestic Version Sample EXW Price: $13.26/pcs;
100 pcs ≤ If your quantity ＜500 pcs : $11.29/ pcs;
Sample Delivery Date: 3-5 days;
Products Size (LxWxH) ：100 x 40 x 35mm;
Lens size：D82 x H8.3mm;
Weight: 60g.
Here are it’s attractive advantages:
1. There is a separate working status indicator light (yellow LED light)
2. Both ends are equipped with waterproof and sunshade covers, improving the waterproof and anti-strong light
3. Only the transmitter wiring is required
4. Range: max 10m Or Max 15M
5. AC 9-24V, DC 12-24V
When you place an order, it will come to you like this. Packed in white color box, one set photoelectric sensor is in one white color box. When you open the white color box, you will see the following images: Transmit sensor+ Transmit sunshade cap, reflective lens (domestic/imported)+ reflective lens sunshade cap, one each of them, and an instruction manual.
Product Application: lifting doors, revolving doors, sliding doors, wall security protection, window and balcony security, warehouse security, parking lots and other outdoor security sites.
LED indication
Green LED :
1) Power on/off
2) LED Flash: weak signal.
Yellow LED : Working status Signal (On/ Off: the working signal is valid/ invalid.)
Product Installation
1）Please install and test the product within Max. detect range.
2）Install the reflector in a suitable position and the reflector should face the sensor.
3）Adjust the position of sensor according to the reflector, and point the sensor to the center of the reflector. [In
the initial installation and debugging, fixed the sensor firstly, the reflector is aligned with the sensor, and then
move the reflector from near to far to the desired position.];
4）Do not power up the sensor until all electrical wiring of the sensor is complete.

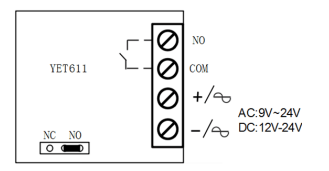

The following image is the product electrical interface:
In the manual, it will provide detailed instructions on how to install it. If you don't know how to operate, install, and use this product. Don’t worry, we can send you a video to show you how to use. Also online teach you to use is ok too.
We insist on providing you with high-quality after-sales service.
The following image is one of it’s screenshot about the manual:

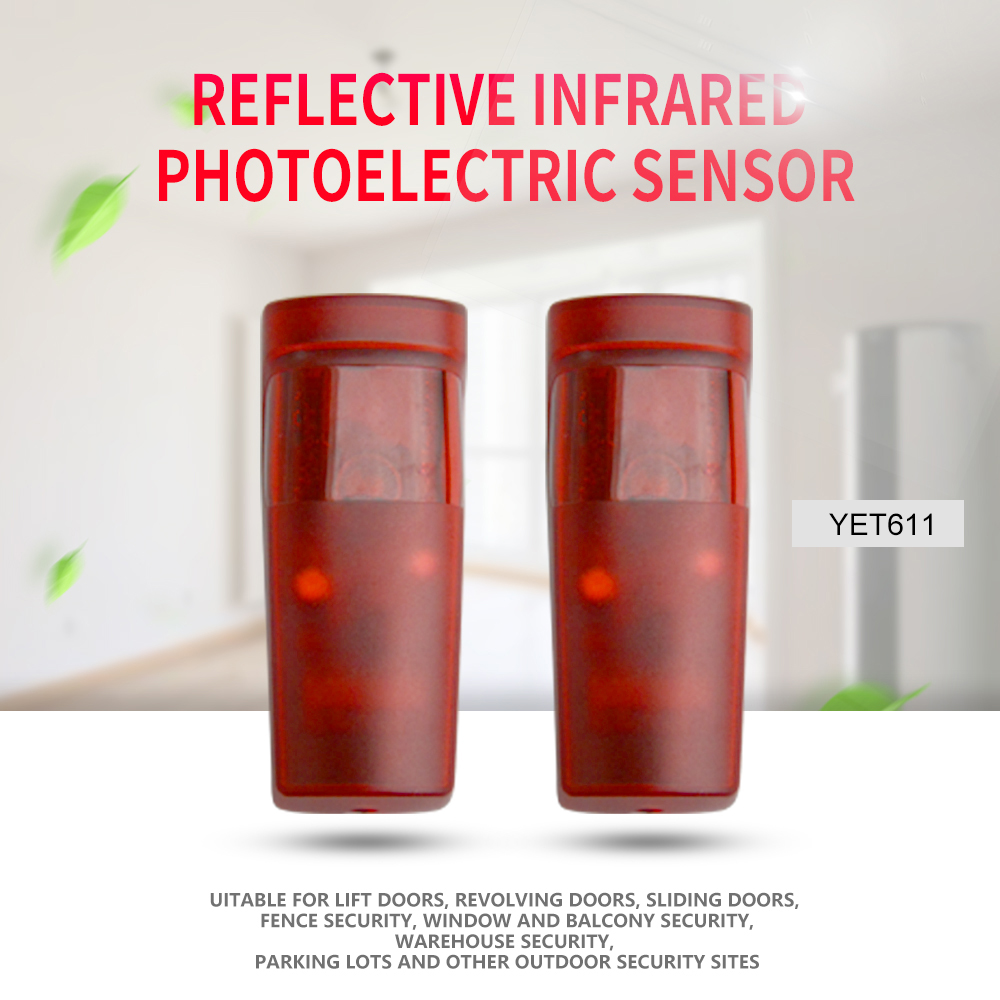

The following images of YET611 for you reference.
It will certainly be an extremely good chance to do business with you.
Don't hesitate to contact us at any time.
