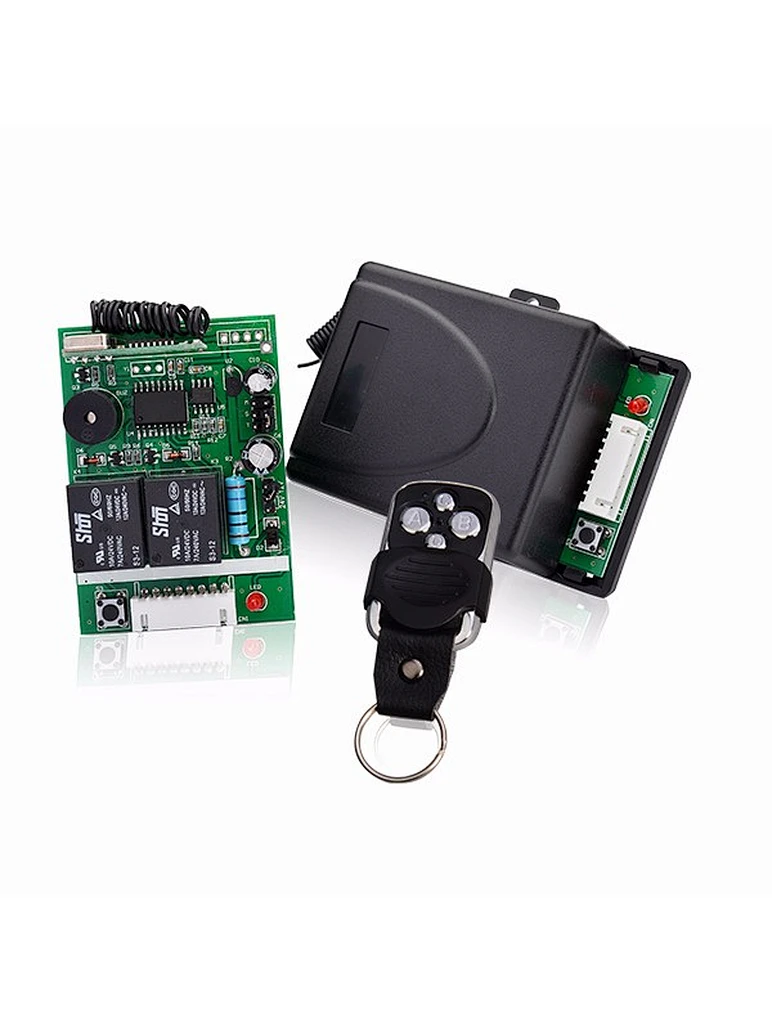

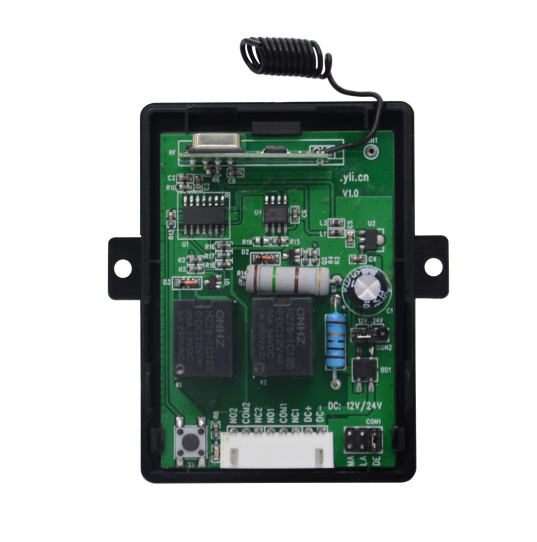

Long Distance 2-channel Door Controller YET428PC-Yil2 for You!

Hello everyone, Have a good day. Manufactured RF remote control, receiver, sensor, and other accessories for more than 18 years.

I'm writing to share the new arrival Long Distance 2-channel Door Controller YET428PC-Yil2 for you.

一. Product specifications and parameters

1. Working voltage: DC12V, DC24V (optional)

2. Static working current: ≤ 10mA

3. Working temperature: -20 ℃ -+70 ℃

4. Receiving sensitivity: ≥ -110dBm

5. Frequency: 315MHz, 433MHz (optional)

6. Contact current: ≤ 20A@14VDC , 5A@250VAC

7. Remote control capacity: 30 (learning code) Pin position 8, 7 useful

8. Open receiving distance: ≥ 180 meters

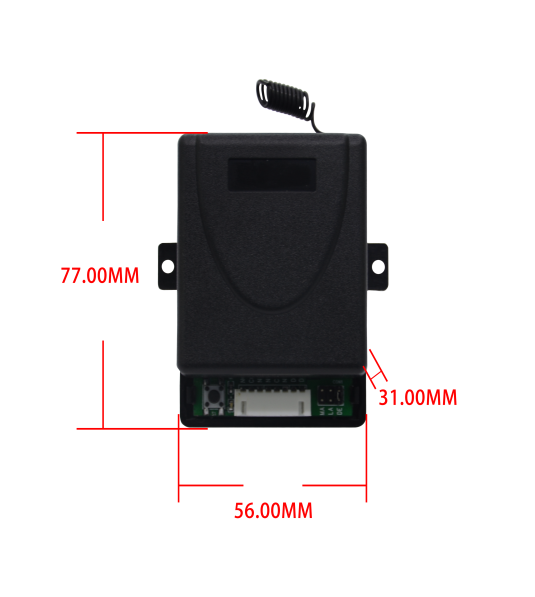

9. Size (L * W * H): 70mm x 77mm x 32.5mm

二. Methods and steps for learning and clearing codes

Learning:

Press the learning button on the receiver, release it unitl LED light flickers. The receiver enters the learning state (LED goes out this moment), then press the remote control button that needs to control the receiver. When the LED light of the receiver flashes quickly 5 times and goes out, it indicates that the learning has been completed. It can learn up to 30 pcs remote control buttons of this type.

Clear code:

If the remote control is lost and you want to disable it all, you should press and hold the learn button (for more than 8 seconds), wait for the LED light to turn off, and the receiver will automatically clear the contents of the memory. To reuse, just learn again.

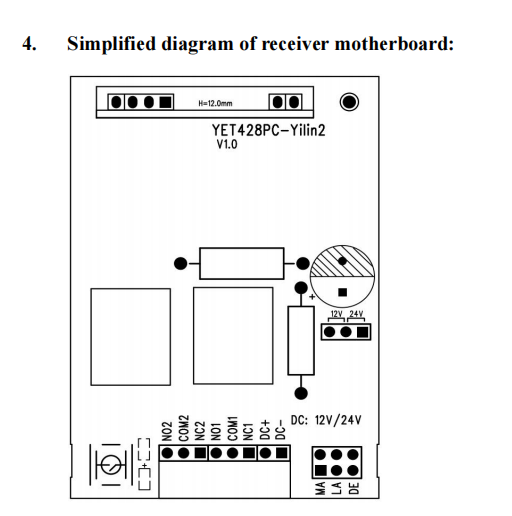

三. Output method

1. Signal inching - - Jumper cap inserted into MA position

2. Signal interlocking - - Jumper cap inserted into LA position

3. Signal for 3 seconds - -Jumper cap inserted into DE position

4. Signal self-locking - - jumper cap not connected

Do you want to place an order for the item?In the meanwhile, you are the most welcome to test sample！Please ask me for details！

Looking forward to receiving your more thoughts.

Thanks with best regards.
