1. Brief introduction
This 4-channel wireless intellect receiving control can provide a switch signal to the four relays, so it can meet many requirements such as: control motor's corotation and reversal; the connection and lock of the switch and other special control programs. This kind of wireless intellect receiving control is mainly applied to auto doors, curtains, lifting appliances, gateways, lifters, industrial control and the security field.
2. The way of output
A. Signal point start – jumper cap disconnect
B. Signal self-locking—jumper cap connect “S”
C. Signal interlock – jumper cap connect “M”
3. Main Technique Data
| Static working current | ≤7mA |
| Working temperature | -40℃ - +80℃ |
| Receiving sensitive | -105dBm |
Working frequenc | 315MHz、433MHz (optional) |
Relay capacity | 10A/250VAC, 10A/277VAC, 12A/125VAC |
| Receive the type of encoding | Learning code, Fixed code, Rolling/Hoping code |
| Maximum storage for transmitter | 30pcs of learning or fixed code; 6pcs of rolling code |

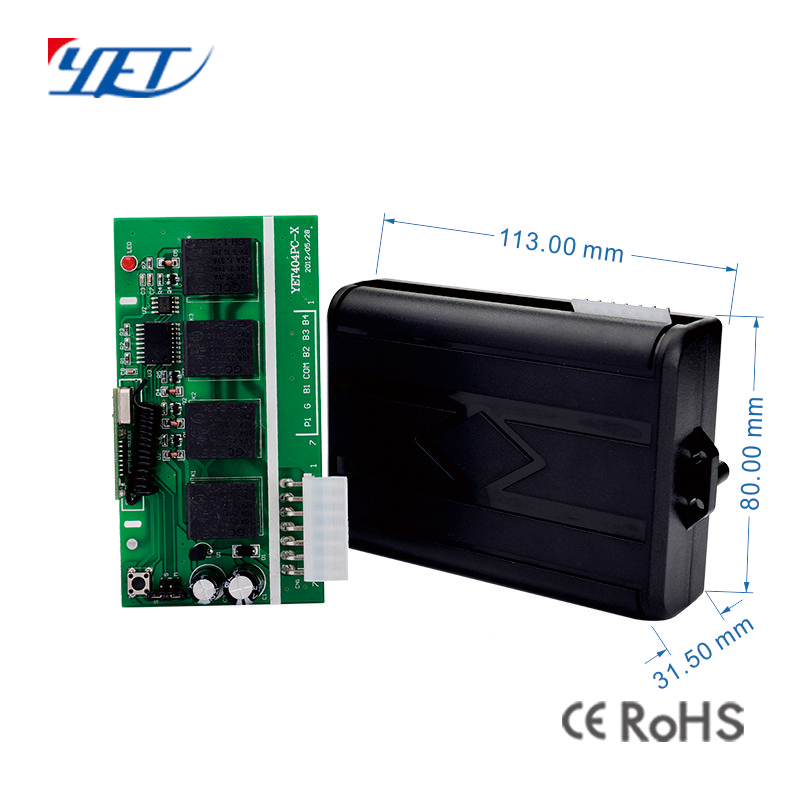

| Size | 113*80*31.5mm |
