Hello everyone, Have a good day, this is YET company which is located in Shenzhen. Manufactured RF remote control, receiver, sensor, and other accessories for more than 19 years.
I'm writing to share NEW ARRIVALS YET477 1-Channel Universal Compatible High-Capacity Receiver for you.
Product Features :
1. Type: YET477
2. Frequency: 433MHz
3. Input Voltage： DC9V-24V

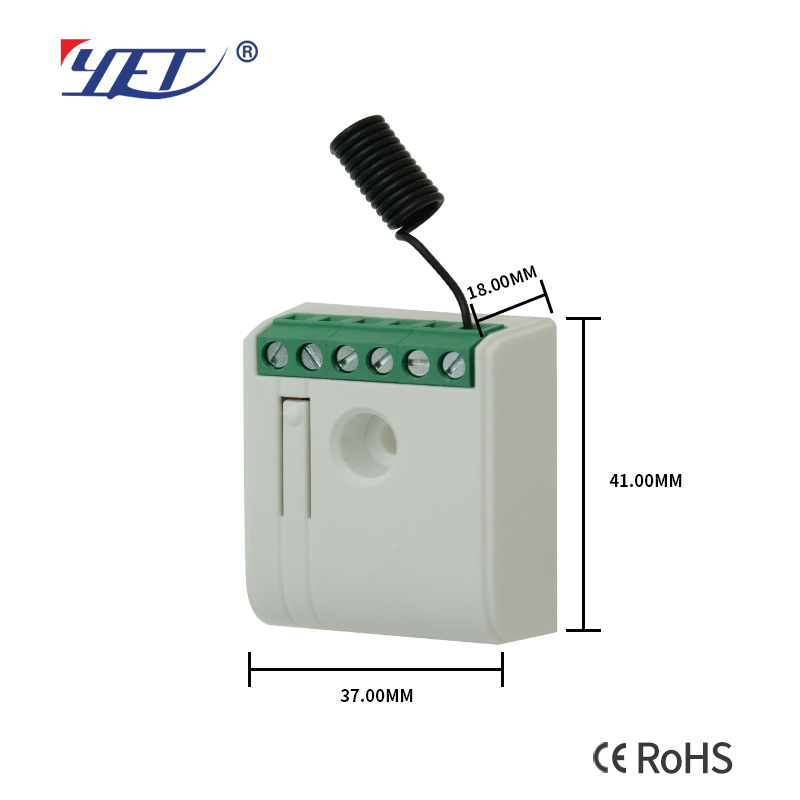

4. Dimensions: 37*18*41mm
5. Static current: ≤10mA
6. Receiver capacity: 400 codes
7. Distance:≥100m
8. Operating temperature: -30℃-+80℃
Operation Method and Function Mode
Ø 1. Erasing transmitter’s codes:
Hold on pressing learning key for more than 6 seconds until the LED light goes out and the buzzer sounds twice, all codes of receivers which had been stored are erased.
Ø 2. Learning transmitter’s codes:
(1) After power on, quickly press the learning button once to enter the remote control learning mode, and the control mode is set to "point start" control;
(2) Quickly press the learning button twice to enter the remote control learning mode, and the control mode is set to "self-locking" ;
(3) Quickly press the learning button 3 times to enter the remote control learning mode, and the control mode is set to "3-second output" ; Enter the remote control learning state, press the button which you choose on the receiver until the LED light flashes three times and the buzzer sounds three times, the receiver's code has been stored.Each button needs to be learned separately.
Ø 3. Relay output control
The learned remote control buttons can be used for relay output control. When receiving the learned remote control signal, the relay output control is performed according to the control mode set during the remote control learning ("point start", "self-locking", "3-second output"),and the buzzer sounds when receiving the learned remote control.

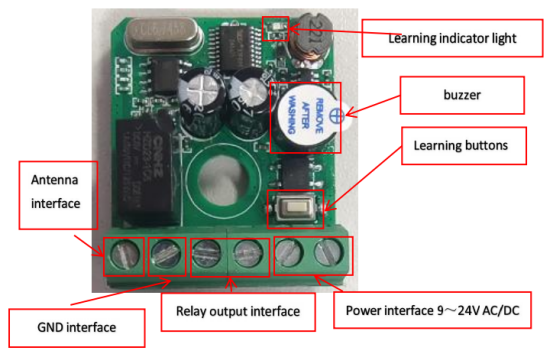

Wiring Diagram:
Do you want to place an order for the item?In the meanwhile, you are the most welcome to test sample！Please ask me for details！
Looking forward to receiving your more thoughts.
Thanks with best regards.
